Three三维世界初体验

Posted on | In

教程：
WebGL中文网教程
three文档
碰撞检测
原理：
以物体的中心为起点，向各个顶点（vertices）发出射线，如果射线与其它的物体相交，则检查最近的一个交点与射线起点间的距离，如果这个距离比射线起点至物体顶点间的距离要小，则说明发生了碰撞。但是，当物体的中心在另一个物体内部时，是不能够检测到碰撞的。而且当两个物体能够互相穿过，且有较大部分重合时，检测效果也不理想。

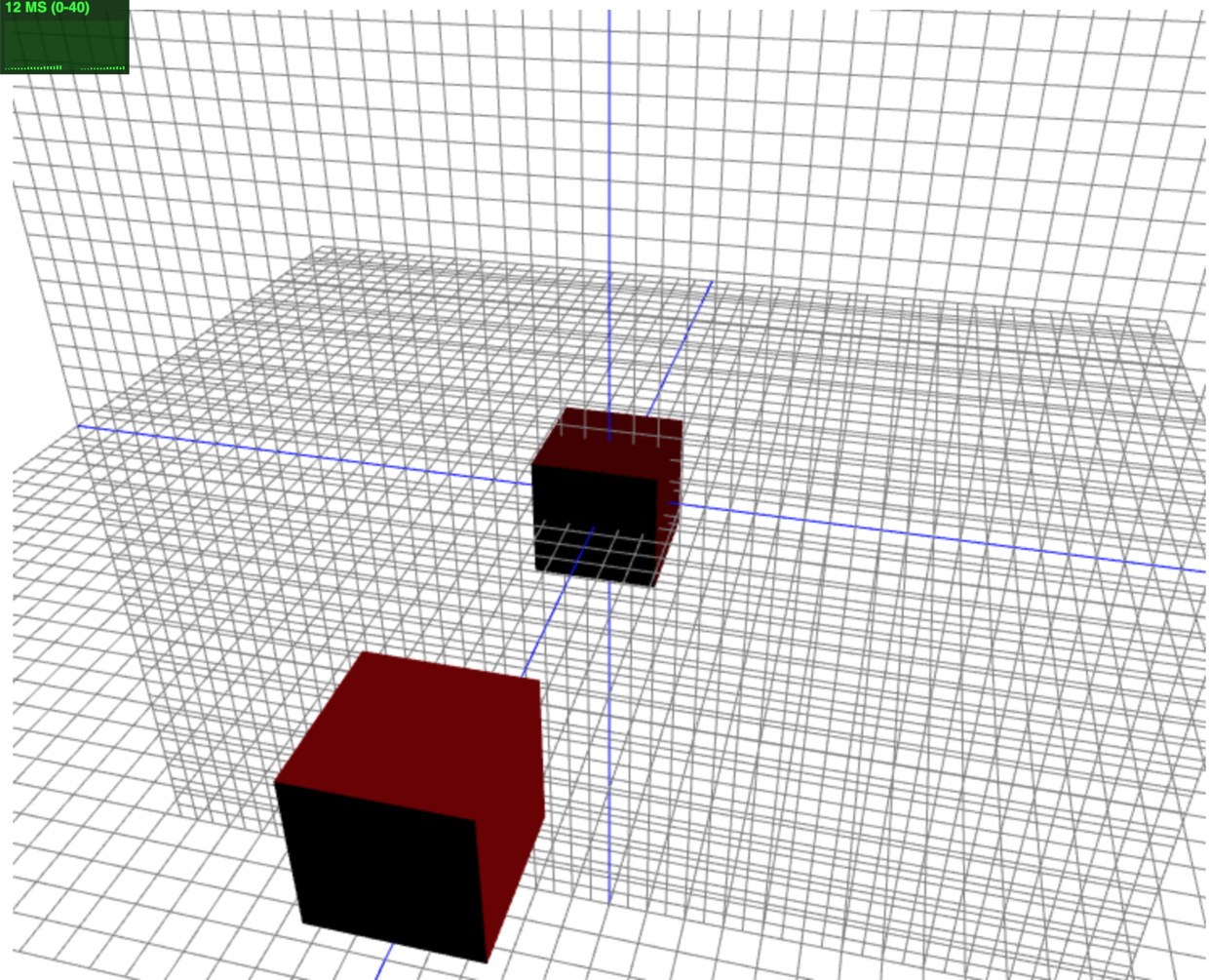

代码示例

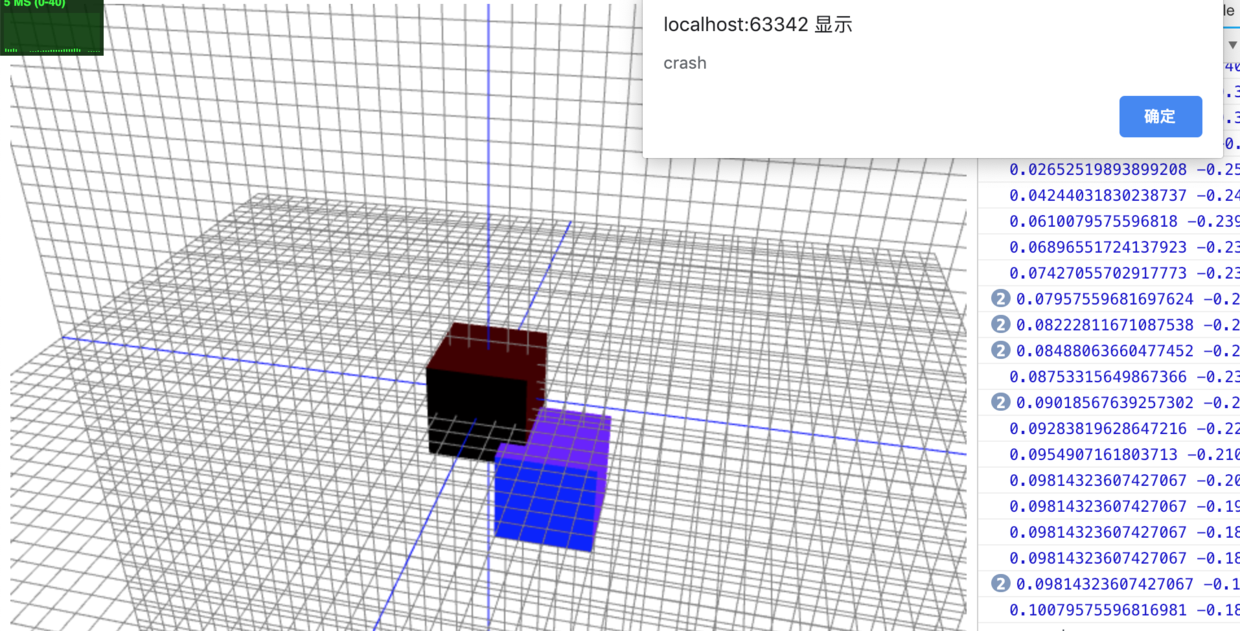

碰撞实例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
// 初始化Three
var renderer;
function initThree() {
    renderer = new THREE.WebGLRenderer();

    renderer.setSize(window.innerWidth, window.innerHeight);

    width = document.getElementById('canvas-frame').clientWidth;
    height = document.getElementById('canvas-frame').clientHeight;
    renderer = new THREE.WebGLRenderer({
        antialias : true
    });
    renderer.setSize(width, height);
    document.getElementById('canvas-frame').appendChild(renderer.domElement);
    renderer.setClearColor(0xffffff, 1.0);
}

// 初始化Camera
var camera;
function initCamera() {
    // 设置透视相机
    camera = new THREE.PerspectiveCamera(45, width / height, 1, 10000);
    // 设置相机位置
    camera.position.x = 200;
    camera.position.y = 500;
    camera.position.z = 800;
    // 设置相机哪里为上
    // camera.up.x = 0;
    // camera.up.y = 0;
    // camera.up.z = 1;
    // 设置相机看向哪
    camera.lookAt(new THREE.Vector3(0, 0, 0));
}

// 初始化场景
var scene;
function initScene() {
    scene = new THREE.Scene();
}

// 初始化灯光
var light;
function initLight() {
    light = new THREE.DirectionalLight(0xFF0000,1);
    light.position.set(100,100,1);
    scene.add(light);
}

// 初始化里面的元素
var cube;
var mesh;
function initObject() {
    for(var k =0;k<2;k++){
        // 一个几何体
        var geometry = new THREE.BoxGeometry( 100,100,100);
        // 不同面设置不同颜色
        for ( var i = 0; i < geometry.faces.length; i += 2 ) {

            var hex = Math.random() * 0xffffff;
            geometry.faces[ i ].color.setHex( hex );
            geometry.faces[ i + 1 ].color.setHex( hex );

        }
        // 设置纹理
        // var material = new THREE.MeshBasicMaterial( { vertexColors: THREE.FaceColors} );
        var material = new THREE.MeshLambertMaterial( { color: Math.random() * 0xffffff } )
        // 把几何体跟纹理混合起来
        mesh = new THREE.Mesh( geometry,material);
        // 元素的位置
        mesh.position.set(0,k*50,k * 400);
        // 把元素加到场景里
        scene.add(mesh);
    }
}

// 渲染
var stats;
function render()
{
    // renderer.clear();
    // mesh.position.x =mesh.position.x +1;
    renderer.render(scene, camera);
    requestAnimationFrame(render);
    stats.update();
    // TWEEN.update();
}

// 性能检测
function initStats(){
    stats = new Stats();
    stats.setMode(1); // 0: fps, 1: ms
// 将stats的界面对应左上角
    stats.domElement.style.position = 'absolute';
    stats.domElement.style.left = '0px';
    stats.domElement.style.top = '0px';
    document.body.appendChild( stats.domElement );
    setInterval( function () {
        stats.begin();
        // 你的每一帧的代码
        stats.end();
    }, 1000 / 60 );
}

// 初始化网格
function initGrid(){
    // 网格的边长是1000，每个小网格的边长是50
    var helper = new THREE.GridHelper( 1000, 50,0x0000ff, 0x808080 );
    var helper2 = new THREE.GridHelper( 1000, 50,0x0000ff, 0x808080 );
    helper2.rotation.x = Math.PI/2;
    scene.add( helper );
    scene.add(helper2);
}

// 初始化事件
var INTERSECTED;
function initEvent(){
    var objects=[];
    var raycaster = new THREE.Raycaster();
    var mouse = new THREE.Vector2();
    //监听全局点击事件,通过ray检测选中哪一个object
    document.addEventListener("mousedown", (event) => {
        console.log('mousedown');
        event.preventDefault();
        mouse.x = (event.clientX / this.renderer.domElement.clientWidth) * 2 - 1;
        mouse.y = - (event.clientY / this.renderer.domElement.clientHeight) * 2 + 1;

        raycaster.setFromCamera(mouse, this.camera);
        this.scene.children.forEach(child => {
            if (child instanceof THREE.Mesh) {//根据需求判断哪些加入objects,也可以在生成object的时候push进objects
                objects.push(child)
            }
        })
        var intersects = raycaster.intersectObjects(objects);


        if (intersects.length > 0) {
            if ( INTERSECTED ) INTERSECTED.material.emissive.setHex( INTERSECTED.currentHex );

            INTERSECTED = intersects[ 0 ].object;
            INTERSECTED.currentHex = INTERSECTED.material.emissive.getHex();
            INTERSECTED.material.emissive.setHex( 0x0000ff );
        }
        else {
            if ( INTERSECTED ) {
                INTERSECTED.material.emissive.setHex( INTERSECTED.currentHex );
                // 碰撞检测
                var originPoint = INTERSECTED.position.clone();
                var crash = false;
                for (var vertexIndex = 0; vertexIndex < INTERSECTED.geometry.vertices.length; vertexIndex++) {
                    // 顶点原始坐标
                    var localVertex = INTERSECTED.geometry.vertices[vertexIndex].clone();
                    // 顶点经过变换后的坐标
                    var globalVertex = localVertex.applyMatrix4(INTERSECTED.matrix);
                    // 获得由中心指向顶点的向量
                    var directionVector = globalVertex.sub(INTERSECTED.position);

                    // 将方向向量初始化
                    var ray = new THREE.Raycaster(originPoint, directionVector.clone().normalize());
                    // 检测射线与多个物体的相交情况

                    var collisionResults = ray.intersectObjects(objects);
                    // 如果返回结果不为空，且交点与射线起点的距离小于物体中心至顶点的距离，则发生了碰撞
                    if (collisionResults.length > 0 && collisionResults[0].distance < directionVector.length()) {
                        crash = true;

                    }
                }
                if(crash){
                    alert('crash');
                    INTERSECTED.position.set(0,0,400);
                }
            }
            INTERSECTED = null;

        }
    }, false);

    document.addEventListener("mousemove",(event) => {
        event.preventDefault();
        if(INTERSECTED){

            var mouse = new THREE.Vector2();
            console.log(( event.clientX / window.innerWidth ) * 2 - 1, - ( event.clientY / window.innerHeight ) * 2 + 1 );
            mouse.set( ( event.clientX / window.innerWidth ) * 2 - 1, - ( event.clientY / window.innerHeight ) * 2 + 1 );

            raycaster.setFromCamera( mouse, camera );
            var objects = [];
            scene.children.forEach(child => {
                if (child instanceof THREE.GridHelper) {
                    objects.push(child)
                }
            });

            var intersects = raycaster.intersectObjects( objects );

            if (intersects.length > 0) {
                var selected = intersects[ 0 ];
                // console.log(selected.point.x,selected.point.y,selected.point.z);
                INTERSECTED.position.copy(selected.point);
                INTERSECTED.position.divideScalar( 50 ).floor().multiplyScalar( 50 ).addScalar( 25 );
            }
        }
    },false);
}

// 动画组件
function initTween(){
    new TWEEN.Tween( mesh.position)
        .to( { x: -400,z:100,y:100 }, 3000 ).repeat( Infinity ).start();
}


function threeStart() {
    initThree();
    initCamera();
    initScene();
    initLight();
    initObject();
    initGrid();
    initStats();
    initEvent();
    // initTween();
    render();
}

threeStart();

拖拽优化：
使用three-drag-controller,替代mousemove时间监听

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
import DragControls from 'three-dragcontrols';
import OrbitControls from 'three-orbitcontrols';
......
function initDragControls() {
    // 初始化拖拽控件
    var dragControls = new DragControls(meshList, camera, renderer.domElement);
    var controls = new OrbitControls(camera, renderer.domElement);

    // 鼠标略过事件
    dragControls.addEventListener('hoveron', function (event) {

    });
    // 开始拖拽
    dragControls.addEventListener('dragstart', function (event) {
        controls.enabled = false;
    });
    // 拖拽结束
    dragControls.addEventListener('dragend', function (event) {
        controls.enabled = true;
        // crashCheck();
    });
}

加入webpack管理，
优化后完整代码：

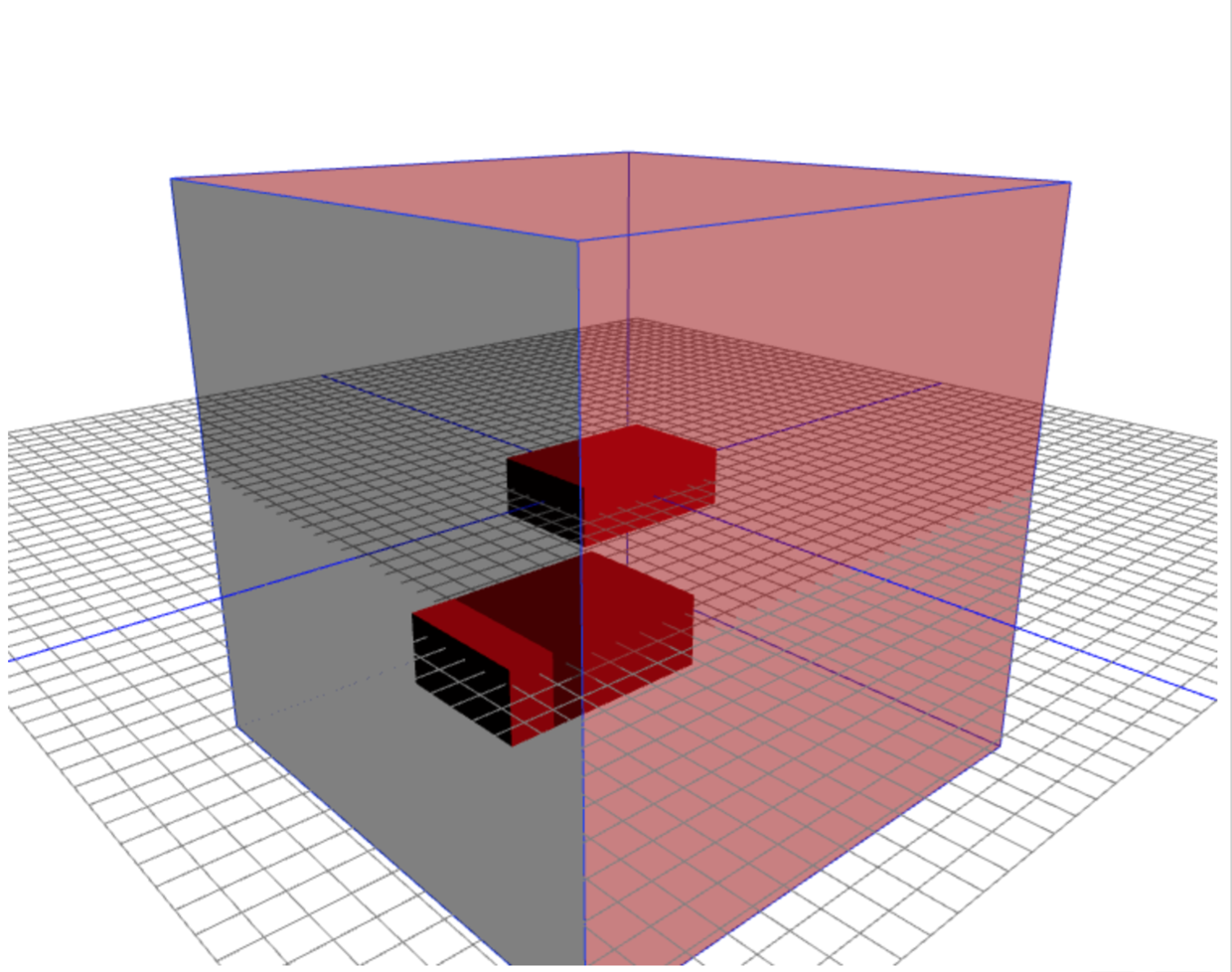

3d

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
var THREE = require('three');
import DragControls from 'three-dragcontrols';
import OrbitControls from 'three-orbitcontrols';
import TransformControls from 'threejs-transformcontrols';

// 初始化Three
var renderer;
var width,height;
function initThree() {
    renderer = new THREE.WebGLRenderer();

    renderer.setSize(window.innerWidth, window.innerHeight);

    width = document.getElementById('canvas-frame').clientWidth;
    height = document.getElementById('canvas-frame').clientHeight;
    renderer = new THREE.WebGLRenderer({
        antialias : true
    });
    renderer.setSize(width, height);
    document.getElementById('canvas-frame').appendChild(renderer.domElement);
    renderer.setClearColor(0xffffff, 1.0);
}

// 初始化Camera
var camera;
function initCamera() {
    // 设置透视相机
    camera = new THREE.PerspectiveCamera(45, width / height, 1, 10000);
    // 设置相机位置
    camera.position.x = 800;
    camera.position.y = 0;
    camera.position.z = 1000;
    // 设置相机哪里为上
    // camera.up.x = 0;
    // camera.up.y = 0;
    // camera.up.z = 1;
    // 设置相机看向哪
    camera.lookAt(new THREE.Vector3(0, 0, 0));
}

// 初始化场景
var scene;
function initScene() {
    scene = new THREE.Scene();
}

// 初始化灯光
var light;
function initLight() {
    light = new THREE.DirectionalLight(0xFF0000,1);
    light.position.set(100,100,1);
    scene.add(light);
}

// 初始化里面的元素
var cube;
var bus;
var meshList = [];
function initObject() {
    for(var k =0;k<2;k++){
        // 一个几何体
        var geometry = new THREE.BoxGeometry( 100,50,150);
        // 不同面设置不同颜色
        for ( var i = 0; i < geometry.faces.length; i += 2 ) {

            var hex = Math.random() * 0xffffff;
            geometry.faces[ i ].color.setHex( hex );
            geometry.faces[ i + 1 ].color.setHex( hex );

        }
        // 设置纹理
        // var material = new THREE.MeshBasicMaterial( { vertexColors: THREE.FaceColors} );
        var material = new THREE.MeshLambertMaterial( { color: Math.random() * 0xffffff } )
        // 把几何体跟纹理混合起来
        var mesh = new THREE.Mesh( geometry,material);
        meshList.push(mesh);
        // 元素的位置
        mesh.position.set(0,k*50,k * 400);
        // 把元素加到场景里
        scene.add(mesh);
    }
    var busGeometry = new THREE.BoxGeometry( 500,500,500);
    var butMaterial = new THREE.MeshLambertMaterial( { color: Math.random() * 0xffffff, transparent: true, opacity: 0.5} );
    bus = new THREE.Mesh(busGeometry,butMaterial);
    bus.position.set(0,0,0);
    scene.add(bus);
    var edges = new THREE.EdgesHelper( bus, 0x1535f7 );//设置边框，可以旋转
    scene.add( edges );
}

// 渲染
var stats;
function render()
{
    // renderer.clear();
    // mesh.position.x =mesh.position.x +1;
    renderer.render(scene, camera);
    requestAnimationFrame(render);
    // stats.update();
    // TWEEN.update();
}

// 性能检测
function initStats(){
    stats = new Stats();
    stats.setMode(1); // 0: fps, 1: ms
// 将stats的界面对应左上角
    stats.domElement.style.position = 'absolute';
    stats.domElement.style.left = '0px';
    stats.domElement.style.top = '0px';
    document.body.appendChild( stats.domElement );
    setInterval( function () {
        stats.begin();
        // 你的每一帧的代码
        stats.end();
    }, 1000 / 60 );
}

// 初始化网格
function initGrid(){
    // 网格的边长是1000，每个小网格的边长是50

    var helper = new THREE.GridHelper( 1000, 50,0x0000ff, 0x808080 );
    var helper2 = new THREE.GridHelper( 1000, 50,0x0000ff, 0x808080 );
    helper2.rotation.x = Math.PI/2;
    scene.add( helper );
    // scene.add(helper2);
}

// 初始化事件
var INTERSECTED;
function initEvent(){
    var objects= meshList;
    var raycaster = new THREE.Raycaster();
    var mouse = new THREE.Vector2();
    //监听全局点击事件,通过ray检测选中哪一个object
    // document.addEventListener("mousedown", (event) => {
    //     console.log('mousedown');
    //     event.preventDefault();
    //     mouse.x = (event.clientX / this.renderer.domElement.clientWidth) * 2 - 1;
    //     mouse.y = - (event.clientY / this.renderer.domElement.clientHeight) * 2 + 1;
    //
    //     raycaster.setFromCamera(mouse, this.camera);
    //     // this.scene.children.forEach(child => {
    //     //     if (child instanceof THREE.Mesh) {//根据需求判断哪些加入objects,也可以在生成object的时候push进objects
    //     //         objects.push(child)
    //     //     }
    //     // })
    //     var intersects = raycaster.intersectObjects(objects);
    //
    //
    //     if (intersects.length > 0) {
    //         if ( INTERSECTED ) INTERSECTED.material.emissive.setHex( INTERSECTED.currentHex );
    //
    //         INTERSECTED = intersects[ 0 ].object;
    //         INTERSECTED.currentHex = INTERSECTED.material.emissive.getHex();
    //         INTERSECTED.material.emissive.setHex( 0x0000ff );
    //     }
    //     else {
    //         if ( INTERSECTED ) {
    //             INTERSECTED.material.emissive.setHex( INTERSECTED.currentHex );
    //             // 碰撞检测
    //             if(crashCheck(objects)){
    //                 alert('crash');
    //                 INTERSECTED.position.set(0,0,400);
    //             }
    //         }
    //         INTERSECTED = null;
    //
    //     }
    // }, false);

    // document.addEventListener("mousemove",(event) => {
    //     event.preventDefault();
    //     if(INTERSECTED){
    //
    //         var mouse = new THREE.Vector2();
    //         mouse.set( ( event.clientX / window.innerWidth ) * 2 - 1, - ( event.clientY / window.innerHeight ) * 2 + 1 );
    //         // console.log(mouse.x,mouse.y);
    //         var vector = new THREE.Vector3( mouse.x, mouse.y, 0.5 ).unproject( camera );
    //         var raycaster = new THREE.Raycaster(camera.position, vector.sub( camera.position ).normalize());
    //         var objects = [bus];
    //         // scene.children.forEach(child => {
    //         //     if (child instanceof THREE.GridHelper) {
    //         //         objects.push(child)
    //         //     }
    //         // });
    //
    //         var intersects = raycaster.intersectObjects( objects );
    //
    //
    //         if (intersects.length > 0) {
    //             var selected = intersects[ 0 ];
    //             console.log(selected.point.x,selected.point.y,selected.point.z,INTERSECTED.position.z);
    //             INTERSECTED.position.set(selected.point.x,selected.point.y,INTERSECTED.position.z);
    //             INTERSECTED.position.divideScalar( 50 ).floor().multiplyScalar( 50 ).addScalar( 25 );
    //
    //         }
    //     }
    // },false);

    var an = 1;
    document.getElementById('J_left').addEventListener('click',function(e){
        e.preventDefault();
        e.stopPropagation();
        var radius = 1000;
        an = an + 1;
        // console.log(an);
        camera.position.z = radius * Math.cos( (Math.PI / 180 ) * (an) );
        camera.position.x = radius * Math.sin( (Math.PI / 180 ) * (an) );
        camera.lookAt(new THREE.Vector3(0, 0, 0));
        // console.log('left,x='+camera.position.x+',z='+camera.position.z);
    });
    document.getElementById('J_right').addEventListener('click',function(e){
        e.preventDefault();
        e.stopPropagation();
        var radius = 1000;
        an = an - 1;
        // console.log(an);
        camera.position.z = radius * Math.cos( (Math.PI / 180 ) * (an) );
        camera.position.x = radius * Math.sin( (Math.PI / 180 ) * (an) );
        camera.lookAt(new THREE.Vector3(0, 0, 0));
        // console.log('left,x='+camera.position.x+',z='+camera.position.z);
    });
}

function crashCheck(objects){
    if(INTERSECTED){
        var originPoint = INTERSECTED.position.clone();
        var crash = false;
        for (var vertexIndex = 0; vertexIndex < INTERSECTED.geometry.vertices.length; vertexIndex++) {
            // 顶点原始坐标
            var localVertex = INTERSECTED.geometry.vertices[vertexIndex].clone();
            // 顶点经过变换后的坐标
            var globalVertex = localVertex.applyMatrix4(INTERSECTED.matrix);
            // 获得由中心指向顶点的向量
            var directionVector = globalVertex.sub(INTERSECTED.position);

            // 将方向向量初始化
            var ray = new THREE.Raycaster(originPoint, directionVector.clone().normalize());
            // 检测射线与多个物体的相交情况

            var collisionResults = ray.intersectObjects(objects);
            // 如果返回结果不为空，且交点与射线起点的距离小于物体中心至顶点的距离，则发生了碰撞
            if (collisionResults.length > 0 && collisionResults[0].distance < directionVector.length()) {
                crash = true;
            }
        }
        if(crash){
            return true;
        }
    }
    return false;
}

// 动画组建
function initTween(){
    new TWEEN.Tween( mesh.position)
        .to( { x: -400,z:100,y:100 }, 3000 ).repeat( Infinity ).start();
}

function initDragControls() {
    // 添加平移控件
    // var transformControls = new TransformControls(camera, renderer.domElement);
    // scene.add(transformControls);

    // 初始化拖拽控件
    var dragControls = new DragControls(meshList, camera, renderer.domElement);
    var controls = new OrbitControls(camera, renderer.domElement);

    // 鼠标略过事件
    dragControls.addEventListener('hoveron', function (event) {
        // 让变换控件对象和选中的对象绑定
        // transformControls.attach(event.object);
    });
    // 开始拖拽
    dragControls.addEventListener('dragstart', function (event) {
        controls.enabled = false;
    });
    // 拖拽结束
    dragControls.addEventListener('dragend', function (event) {
        controls.enabled = true;
        crashCheck();
    });
}


function threeStart() {
    initThree();
    initCamera();
    initScene();
    initLight();
    initObject();
    initGrid();
    initDragControls();
    // initStats();
    initEvent();
    // initTween();
    render();
}

threeStart();

后期打算添加物理引擎Physijs
